Stable transport and improved surrounding environment through measures against belt mistracking and blow-off

Belt mistracking occurred on a belt conveyor transporting coal due to uneven loading. The mistracking caused bulk material spillage and loss of raw materials, and also worsened the dusty environment around the conveyor.

In particular, prolonged mistracking accelerated wear on the belt and rollers, increasing the risk of equipment trouble.

In addition, spillage occurred from the gap between the skirt rubber and the rollers in the chute section. Not only did this require regular cleaning, but the dust scattered around also affected the working environment.

By combining two types of products, we have simultaneously improved two different problems: belt mistracking and spillage.

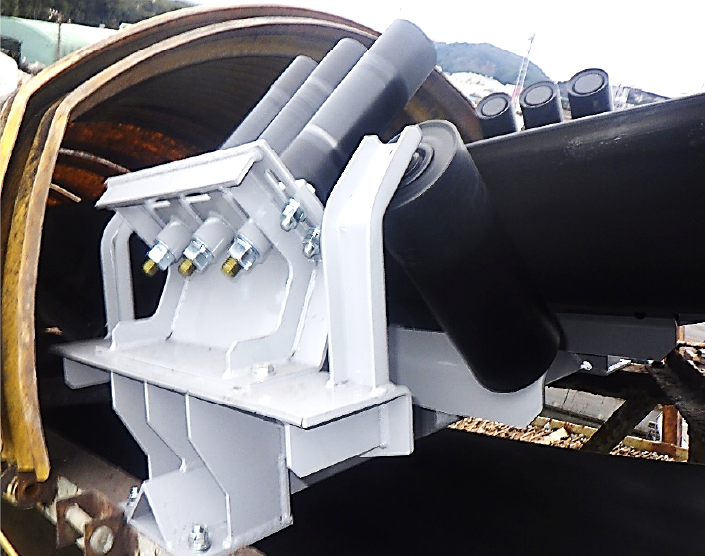

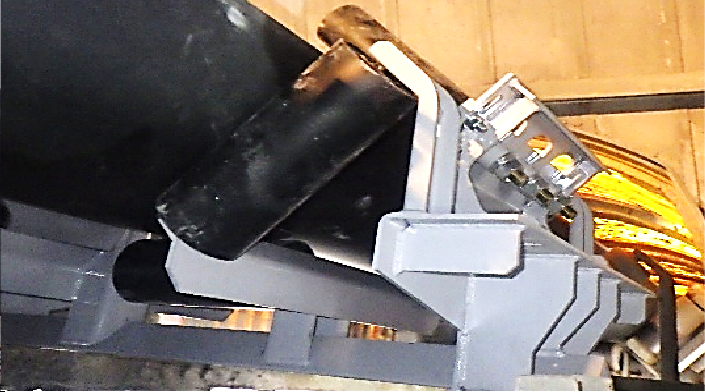

Forward-tilting carrier idler with Troa guide rollers

Thrust-based mistracking adjustment prevents belt deviation and bulk material spillage
Reduced mistracking results in less raw material loss and longer equipment life

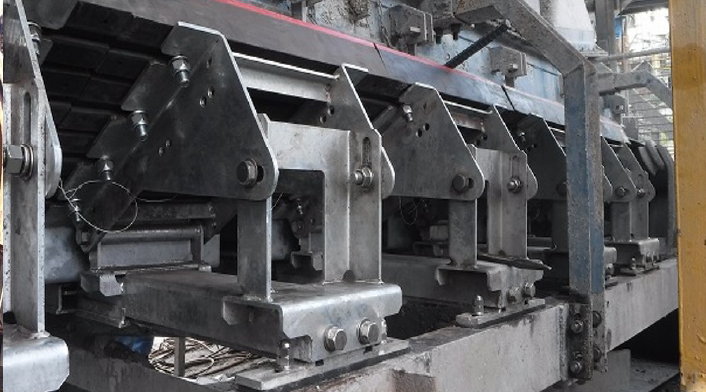

Impact Slide

Eliminates gaps between the skirt rubber and the belt, reducing dust dispersion and improving the working environment
Impact rollers on the center rollers reduce the load on the belt

This has resulted in multiple benefits, such as more stable transport, reduced cleaning work, and lower equipment maintenance costs, improving safety and efficiency at the site.

Conveyor mistracking and belt lift-off are suppressed, improving stable operation and maintainability.

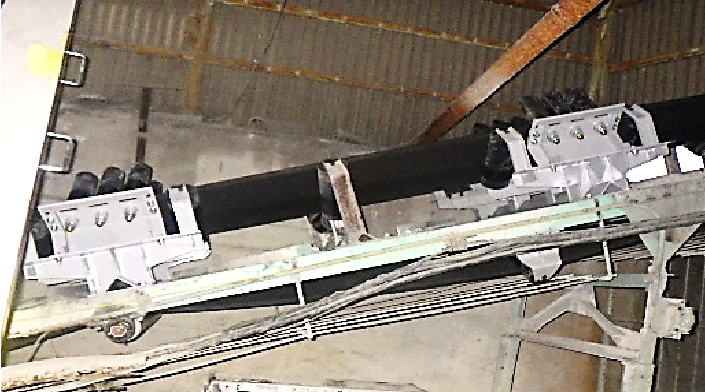

The following issues were encountered in the coal transport line at the power plant. The belt lifted at the steep conveyor angles and was forced down by the wheels, causing frequent damage and belt mistracking.

Belt mistracking just before the tail pulley reduced transport stability. The conveyor had to be stopped every time mistracking occurred, which affected work efficiency and safety.

These problems not only caused transport problems, but also increased operating costs due to regular stoppages and maintenance.

Case study of improving coal drop prevention in a coal conveyor line

On conveyor lines that transport coal, due to the nature of the conveyed material, it frequently adheres to the underside of the belt, and when it passes through the return roller, the adhered material tends to fall off, causing spillage.

In particular, when the coal is wet or contains a large amount of fine powder, it easily sticks to the underside of the belt, peels off on the rollers during operation, and accumulates on the bottom and around the conveyor, deteriorating the working environment and requiring regular cleaning.

In addition, depending on where the falling coal occurred, cleaning was required in areas with poor footing or near moving parts, which was a safety concern. In this case, the following measures were taken to reduce the burden of cleaning work and improve work safety.
